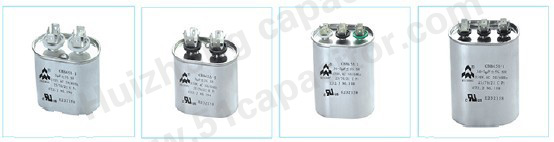

CBB65A-1 RUN CAPACITORS
CBB65A-1 RUN CAPACITORSMain Feature:Low dissipation factor small inherent temperature rise, excellentself-healing stabil
CBB65A-1 RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
refrigerator which demand 50/60Hz AC power supply Have
safe protection constrution.
Specifications
Climatic category | Rate voltage | Testing voltage T-T | Testing voltage T-C | Capacitance tolerance | Dissipation factor |
-25/+70/21 -40/+85/21 | 370/440VAC | 1.75Un/5S (2Un/5S) | 2000V.AC/5s | ±5% (±10%) | ≤0.002 (100Hz) |
Capacitance range:2MFD-100MFD,15+5MFD-80+7.5MFD
Dimension(mm):W: 51.5(71),H:60-150,L:31.5(45)
Reference standard:UL810, IEC252, EN60252,GB3667
Certification: UL Construction, UL 10,000AFC,TUV
Safety grade:P1 and P2
