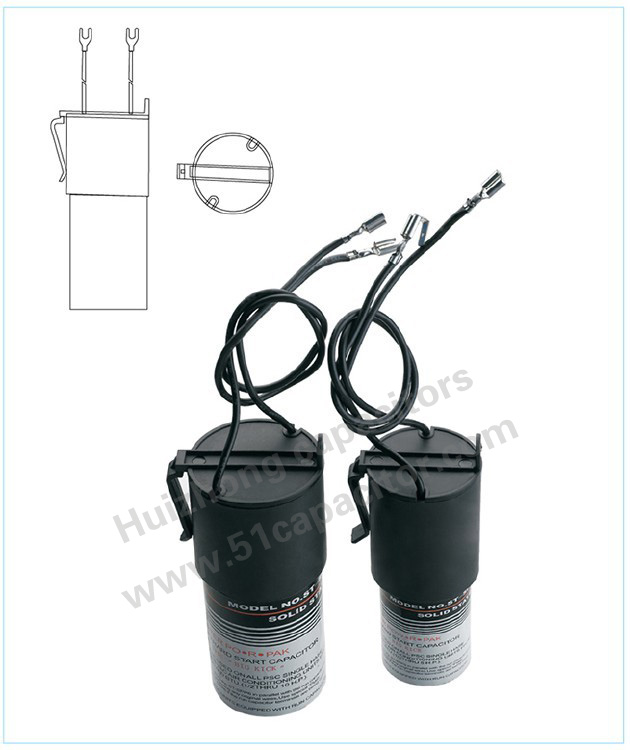

ABS Starting Capacitors  MOTOR START CAPAClTORS

Feature:

ABS case

Voltages from 110V AC to 330V AC

UL Recognized Capacitors

Applicable Scope :

TO start and run of single phase motors in alternating current usage,

And It suit for single phase A.C.motors with frequency of 50Hz-60Hz.

General Specifications:

Temperature£º-25¡«+65¡æ

Voltage Range£º110¡«330V AC

Capacitance Range£º21¡«1280¦Ìf

Capacitance Tolerance£º¡À 20%

Operating Frequency£º50/60Hz

Case Size£º8 Standard Size from 38mmx70mm~65x111mm

Termination£º1/4¡±Quick Disconnect Terminals(Std.)

Performance Specification£ºMeets Requirements of EIA463-A

Product Decription:

CD60 start capacitor is developed and researched according to standard

Of American Electronics Association(ANSI£¯EIA-463).The external case of

the capacitor is made of ABS plasticized which character is not only good

insulating resistance,strong resistance damaged but also protecting electro

liquid as good sealed feature. It is popular used for the super AC application

as good life,higher degree of reliability and stability.

Applications:

For all single phase air compressor and air conditioning

For voltage from 115V to 277 V system

For compressor rating from 4,000 thru 120,000 BTU¡¯s£¬and l/2 thru l0 HP
