Low voltage series reactor (HZ-72)

Product structure characteristics and wiring methods Performance parameterUse of environmental conditionsWhen the capacitor c

Product structure characteristics and wiring methods Performance parameter
Use of environmental conditions

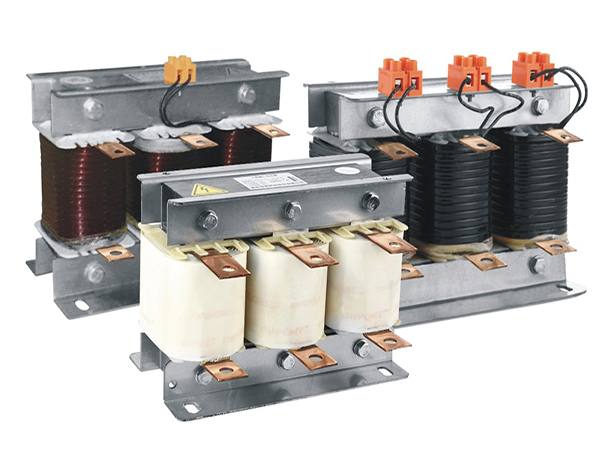

Low voltage series reactor (HZ-72)(图1)

When the capacitor compensates for capacitive reactive power, it is often affected by harmonic currents, closing currents, and operating process voltages, causing capacitor damage and power factor reduction, to do this, a series reactor is required at the front end of the capacitor, used to suppress and absorb harmonics and protect capacitors, avoid harmonic voltage and current and impact voltage and current effects, improve power
quality, improve system power factor, and extend capacitor life.

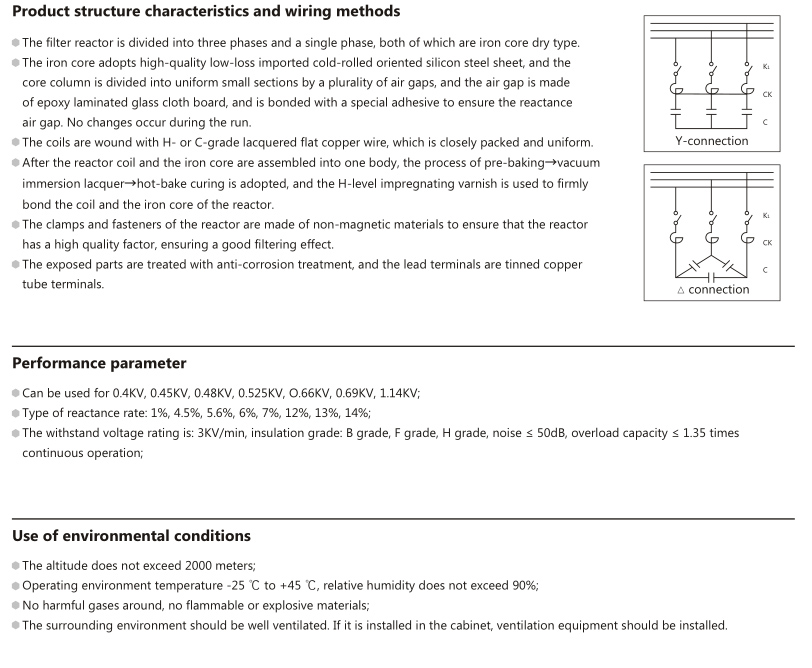

Low voltage series reactor (HZ-72)(图2)

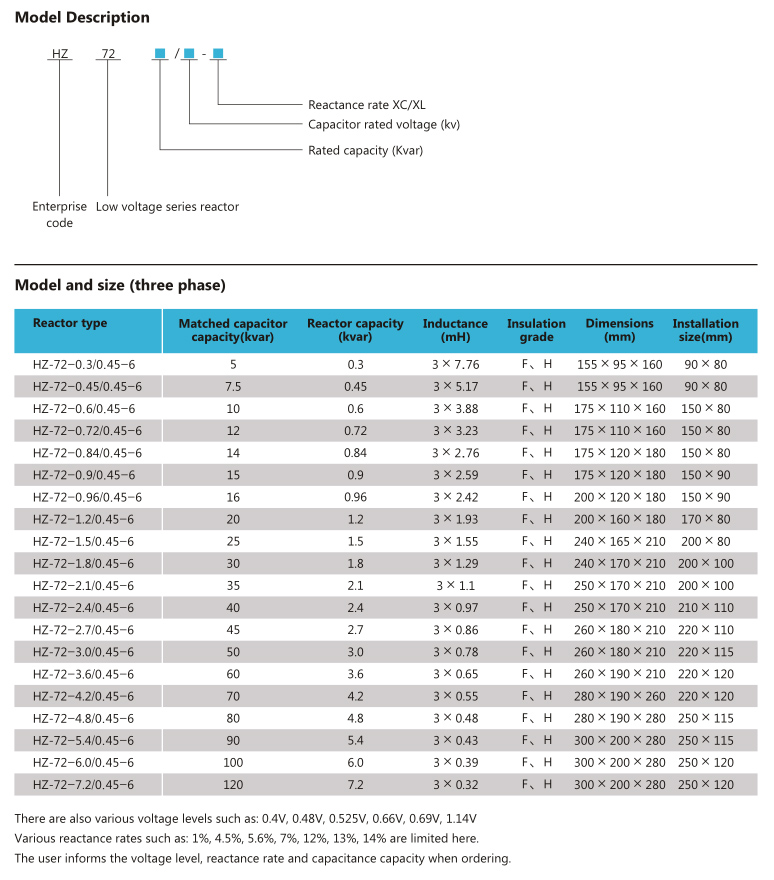

Low voltage series reactor (HZ-72)(图3)

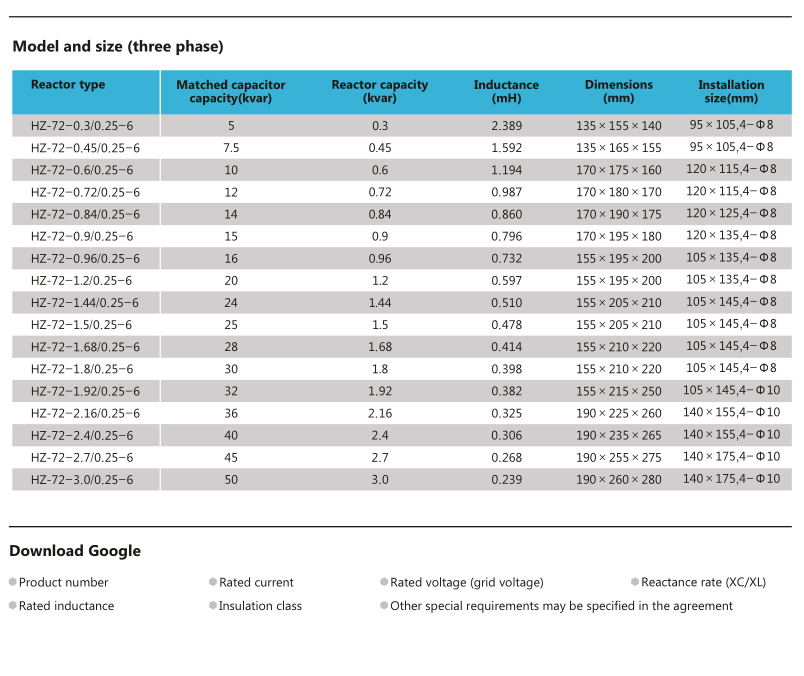

Low voltage series reactor (HZ-72)(图4)
