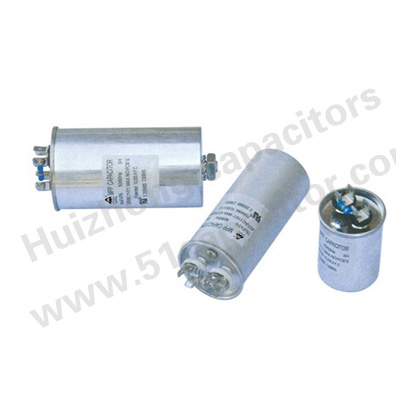

CBB65A-5 HID LIGHTING 110℃ CAPACITORS
CBB65A-5 HID LIGHTING 110℃ CAPACITORS
Features and Users:
The capacitor has advantages of low dissipation，high insulation resistance，
good self-healing character, and steady electricity performance,
anti—striking current，strong Over-carrying capacity etc. It is
safe and reliable with Inner anti-explosion device and with outer
discharge resistance. It is applied in lighting metal halide lamp for
the help of the starting and running
Technical Parameter
Max.Temp | Rate voltage | CapacitanceRange | Test voltage | Dissipation Factor | Operating Frequency |
110℃ | 120-540 | 3～100 | T-T2.0Un/60S T-C:≥2500V.AC/60S | Tan∮≤0.002(100Hz) | 50/60Hz |
Executing Standards：lEC61048,IEC61049,EN61048，EN61049,UL810
Capacitance Tolerance:±3%,±5% or fulfilled upon request.
Outline Size
Rated Capacitance(μf) | Rated Voltage(VAC) | Dimension(mm) | |||
D(mm) | H(mm) | L(mm) | M(mm) | ||
28 | 240 | 45 | 75 | 18 | 8×10 |
55 | 240 | 50 | 100 | 18 | 8×10 |
10 | 280 | 40 | 65 | 16 | 8×10 |
35 | 300 | 45 | 100 | 18 | 8×10 |
69 | 300 | 55 | 100 | 20 | 10×10 |
10 | 400 | 45 | 75 | 18 | 8×10 |
15 | 400 | 45 | 85 | 18 | 8×10 |
24 | 400 | 50 | 100 | 18 | 8×10 |
24 | 525 | 55 | 100 | 20 | 10×10 |
26 | 540 | 55 | 100 | 20 | 10×10 |
30 | 540 | 55 | 110 | 20 | 10×10 |
Note：1. Other types besides the above listed can be produced according to customer’s needs.
2.Data above may be changed without notice
